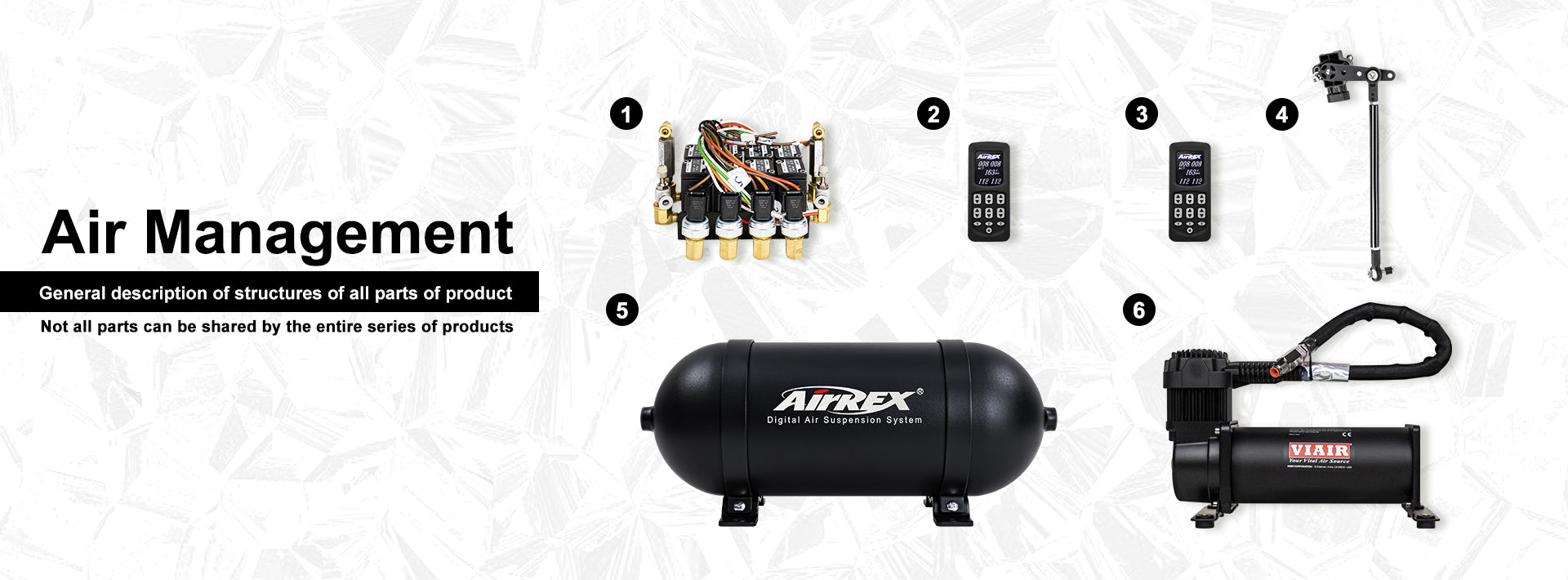

Air Management

1

Manifold Valve

Provides independent adjustment and control of all four air struts for precise suspension management.
Supports a pressure differential of up to 200 PSI between both ends.
Features compression fittings for secure, reliable and leak-resistant connections.
Individually removable components make servicing, maintenance and replacement quick and straightforward.

2

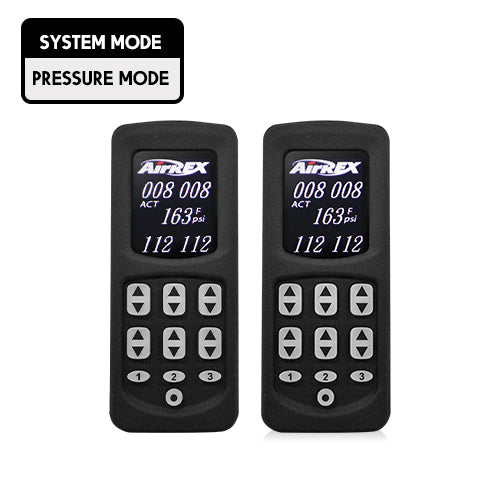

Wired Controller

It is equipped with WIFI signal receptor function so it can be connected to WIFI wired controller operating system via the APP.
Due to security consideration, the wireless and wired controller cannot be used simultaneously.
Provides three height adjustment presets

Unique product code (warranty code)【C001~】、【001A~】are equipped with WIFI function.

3

Wireless Controller

Utilises Zigbee wireless networking technology for reliable wireless communication and control.
Provides wireless operation within the supported control range. Actual range may vary depending on distance, surroundings and indoor or outdoor conditions.
Features three programmable height presets for quick and convenient ride-height adjustment.
Provides a real-time display of air strut and tank pressures, along with additional system diagnostics and feedback.

4

Height Sensor

Features a 1°–359° angle adjustment range for precise height measurement. During installation, the sensor must not pass through the 0° position, as 0° and 360° represent the same reference point.
Includes a user-friendly vehicle height calibration interface, designed to make setup and adjustment quick and straightforward.

5

Air Tank

Includes a 2.3-gallon (approx.) aluminium air tank, measuring 450 mm × 168 mm.
Constructed from seamless aluminium alloy to help prevent internal oxidation and reduce the risk of blocked air passages.
Features eight 1/4" ports, providing flexible options for system configuration and installation.
Equipped with adjustable mounting feet for easier positioning and installation.
Includes external pressure switches as part of the kit.
Features durable copper components designed to resist air leaks, loosening and oxidation.
Copper fittings are sealed with airtight thread sealant to provide secure, reliable connections.
Each tank undergoes comprehensive factory leak testing to ensure reliable operation before dispatch.

6

Air Compressor

VIAIR air compressor are equipped with all AirREX Digital Air Suspension System.

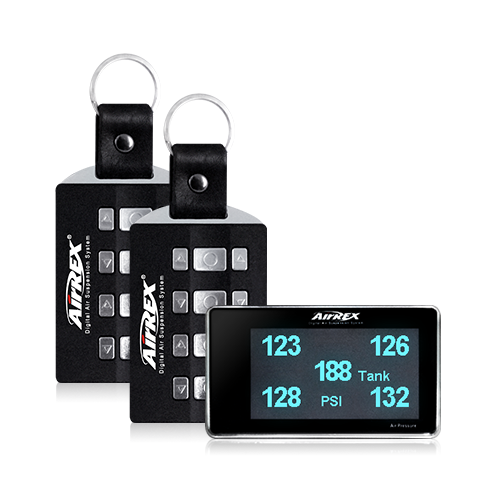

Elegant Series

Control System: SAISIYAT

Allows the front or rear air struts to be raised or lowered simultaneously for convenient ride-height adjustment.
The manifold valve provides independent control of the front and rear air struts, offering greater flexibility over suspension setup.
Designed for straightforward maintenance and servicing across the full product range.
Supports a pressure differential of up to 200 PSI across the manifold valve.
Features secure copper compression fittings, providing a robust and reliable connection compared with standard push-fit fittings.
The controller provides individual pressure readings for the front air struts, rear air struts and air tank, making system pressures easy to monitor at a glance.

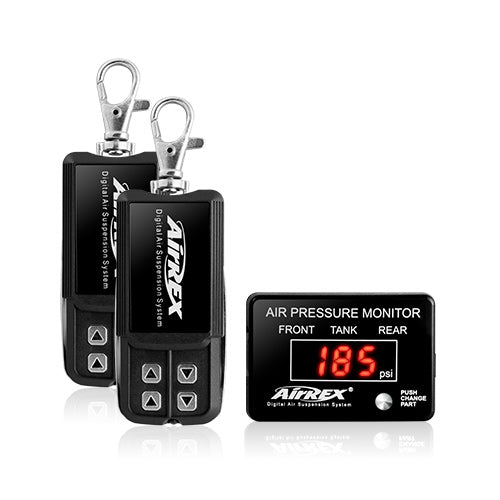

Economic Series

Control Systems

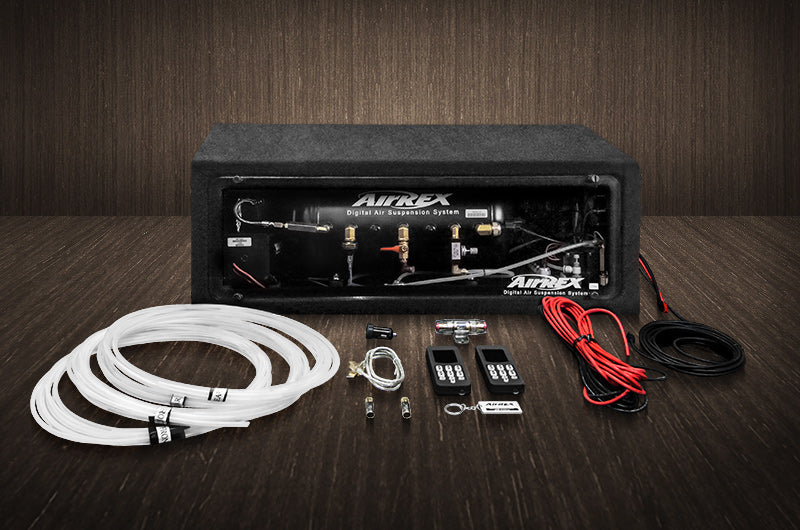

RUKAI – Boxed Pressure Type (Plug & Play)

PUYUMA – Bulk Pressure Type (for Trunk Setups)

Provides independent raising and lowering control of all four air struts, allowing precise adjustment of the vehicle’s suspension.
Designed for straightforward maintenance and servicing across the full product range.
Supports a pressure differential of up to 200 PSI across the manifold valve.
Features secure copper compression fittings, providing a robust and reliable connection compared with standard push-fit fittings.
Supports cross-system upgrades, allowing the system to be upgraded or expanded when required.
The digital display is installed separately within the vehicle, allowing convenient access and visibility.
Displays five pressure readings simultaneously, including each of the four individual air struts and the air tank pressure.

Classic Series

Control Systems

TAYAL – Boxed Pressure Type (Plug & Play)

BUNUN – Bulk Pressure Type (for Trunk Setups)

Features an automatic sleep mode, allowing the system to power on or off according to the vehicle’s power status.
When the vehicle is started, the system can automatically activate Preset 2. This feature can be disabled and is not available for fully electric vehicles.
Both the mobile app and wired controller can store three individual height presets for quick and convenient adjustment.
Allows the air compressor operating pressure range to be adjusted to suit the required system setup.
Features compressor run-time protection to help prevent excessive continuous operation.
Includes compressor overload protection for additional system reliability and safety.
Features manifold valve short-circuit protection to help protect system components.
Includes reverse-polarity protection for the main power connection.
Provides independent raising and lowering control of all four air struts for precise suspension adjustment.
Designed for straightforward maintenance and servicing across the full product range.
Supports a pressure differential of up to 200 PSI across the manifold valve.
Features secure copper compression fittings, providing a robust and reliable connection compared with standard push-fit fittings.
Supports cross-system upgrades, allowing the system to be upgraded or expanded when required.
Can be operated using the mobile app on compatible smartphones and tablets alongside the wired controller, with support for both Android and iOS devices.

Classic Height Series

Control Systems

TARUKU – Boxed Height Type (Plug & Play)

KAVALAN – Bulk Height Type (for Trunk Setups)

Features an automatic sleep mode, allowing the system to power on or off according to the vehicle’s power status.
When the vehicle is started, the system can automatically activate Preset 2. This feature can be disabled and is not available for fully electric vehicles.
Both the mobile app and wired controller can store three individual height presets for quick and convenient suspension adjustment.
Allows the air compressor operating pressure range to be adjusted to suit the required system configuration.
Features compressor run-time protection to help prevent excessive continuous operation.
Includes compressor overload protection for increased system reliability and safety.
Features manifold valve short-circuit protection to help protect system components.
Includes reverse-polarity protection for the main power connection.
Provides independent raising and lowering control of all four air struts, allowing precise control of the vehicle’s ride height.
Designed for straightforward maintenance and servicing across the full product range.
Supports a pressure differential of up to 200 PSI across the manifold valve.
Features secure copper compression fittings, providing a robust and reliable connection compared with standard push-fit fittings.
Supports cross-system upgrades, allowing the system to be upgraded or expanded when required.
Can be operated through the mobile app on compatible smartphones and tablets alongside the wired controller, with support for both Android and iOS devices.
